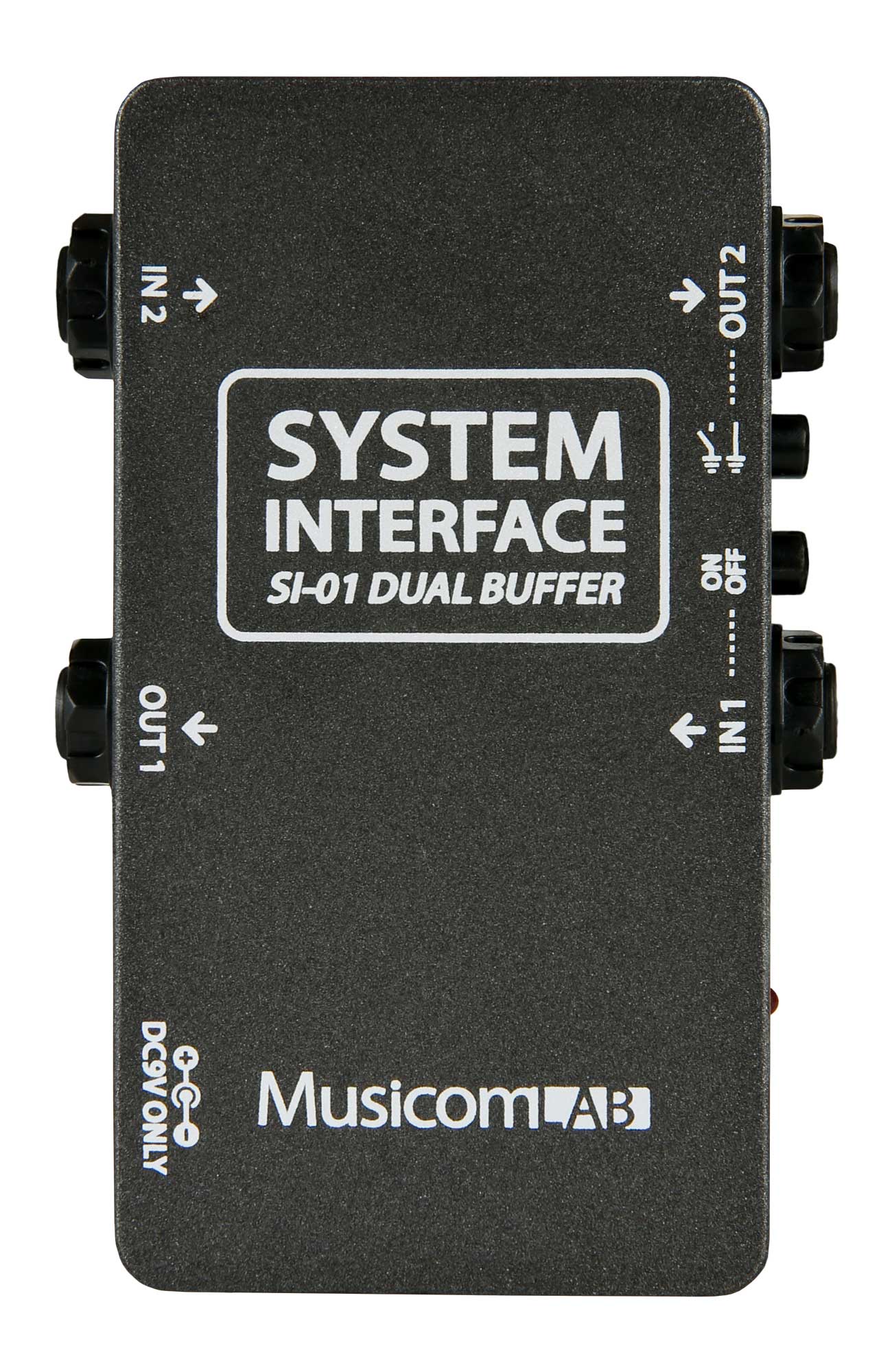

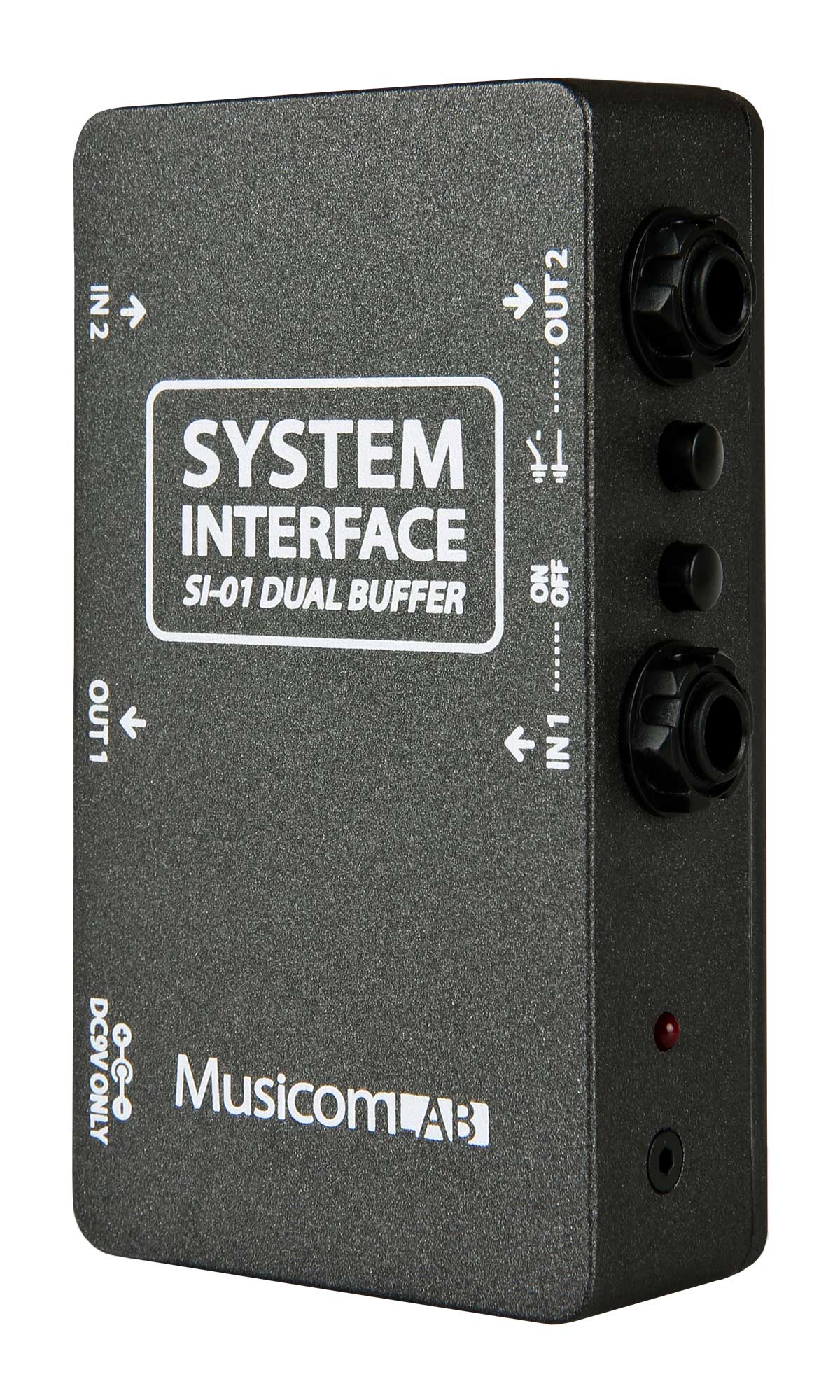

MusicomLAB SI-01 System Interface Dual Buffer
MusicomLAB SI-01 System Interface Dual Buffer
Regular price
$145.00 USD
Regular price
Sale price
$145.00 USD
Unit price
per
Couldn't load pickup availability
MusicomLAB SI-01 System Interface Dual Buffer.The SI-01 features Two high-quality buffers.
The First buffer is based on Discrete Class-A circuitry.
The Second buffer is based on a Low-Noise Op-Amp.
The SI-01 System Interface prevents loss of signal level, high frequency and low end punch that is caused by impedance mismatch and cable capacitance.
Some Fuzz or Wah pedals don’t like to be fed with a buffered signal. For this reason, the first buffer can to be bypassed.
You can avoid Ground Hum/Noise that may occur when two buffers are used for different signal routing, because the second buffer is supplied with a fully isolated power supply.
Powered by 9VDC(center negative) 45mA
Dimensions : 72(W) x 113(D) x 31(H) mm 2.9(W) x 4.5(D) x 1.2(H) inches
Weight : 180 g / 0.4 lb
The First buffer is based on Discrete Class-A circuitry.
The Second buffer is based on a Low-Noise Op-Amp.
The SI-01 System Interface prevents loss of signal level, high frequency and low end punch that is caused by impedance mismatch and cable capacitance.
Some Fuzz or Wah pedals don’t like to be fed with a buffered signal. For this reason, the first buffer can to be bypassed.
You can avoid Ground Hum/Noise that may occur when two buffers are used for different signal routing, because the second buffer is supplied with a fully isolated power supply.
Powered by 9VDC(center negative) 45mA
Dimensions : 72(W) x 113(D) x 31(H) mm 2.9(W) x 4.5(D) x 1.2(H) inches
Weight : 180 g / 0.4 lb
