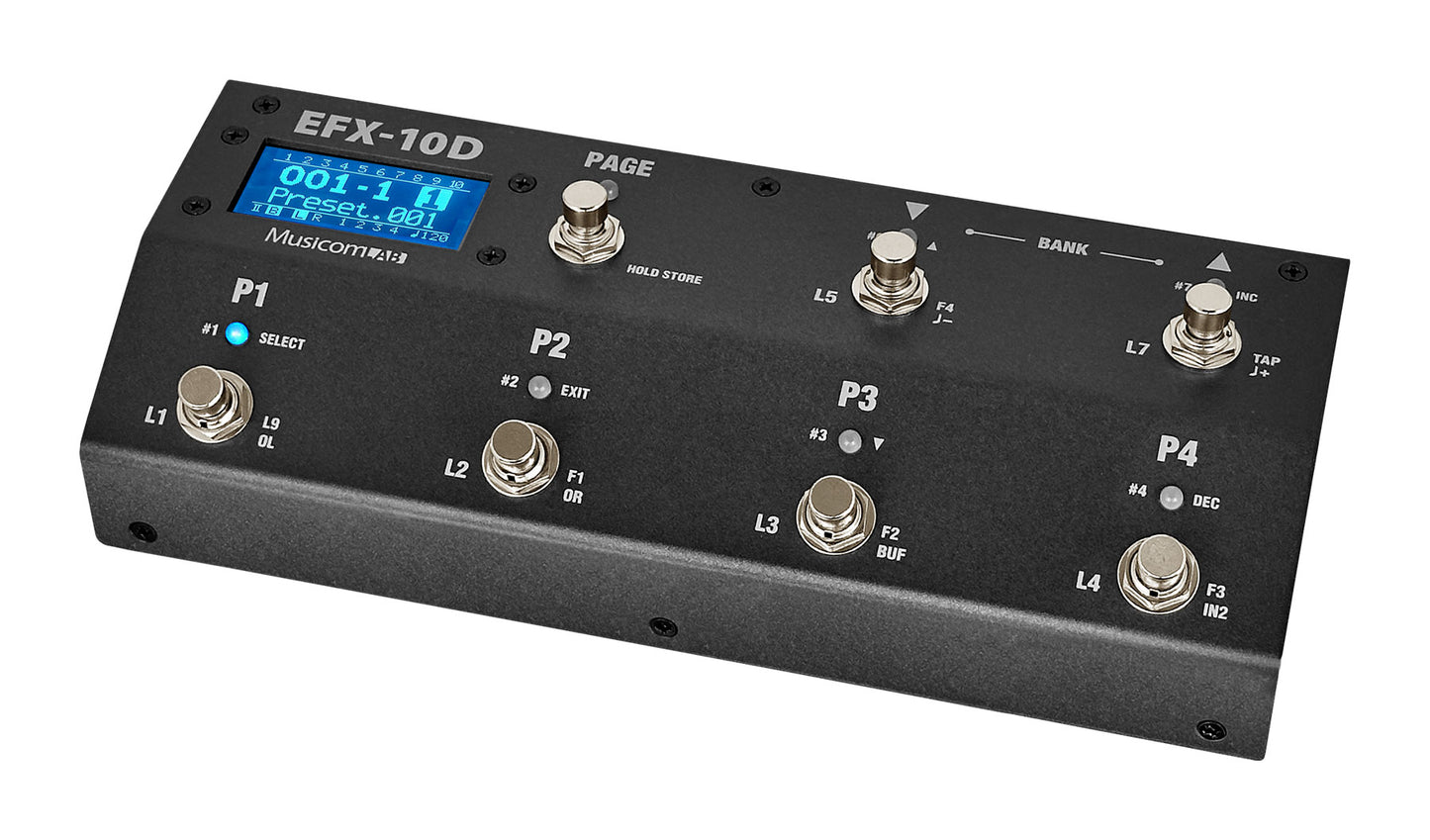

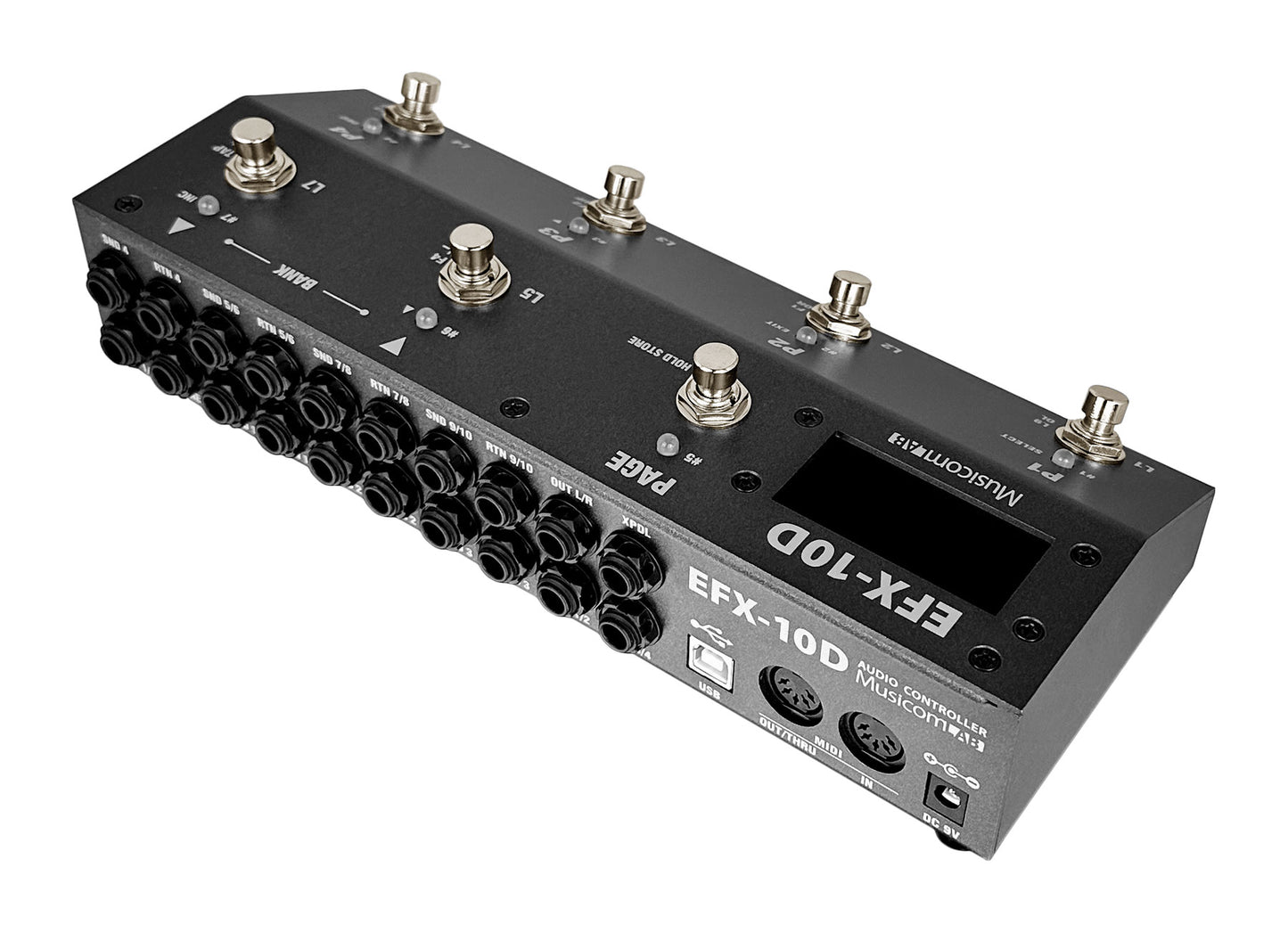

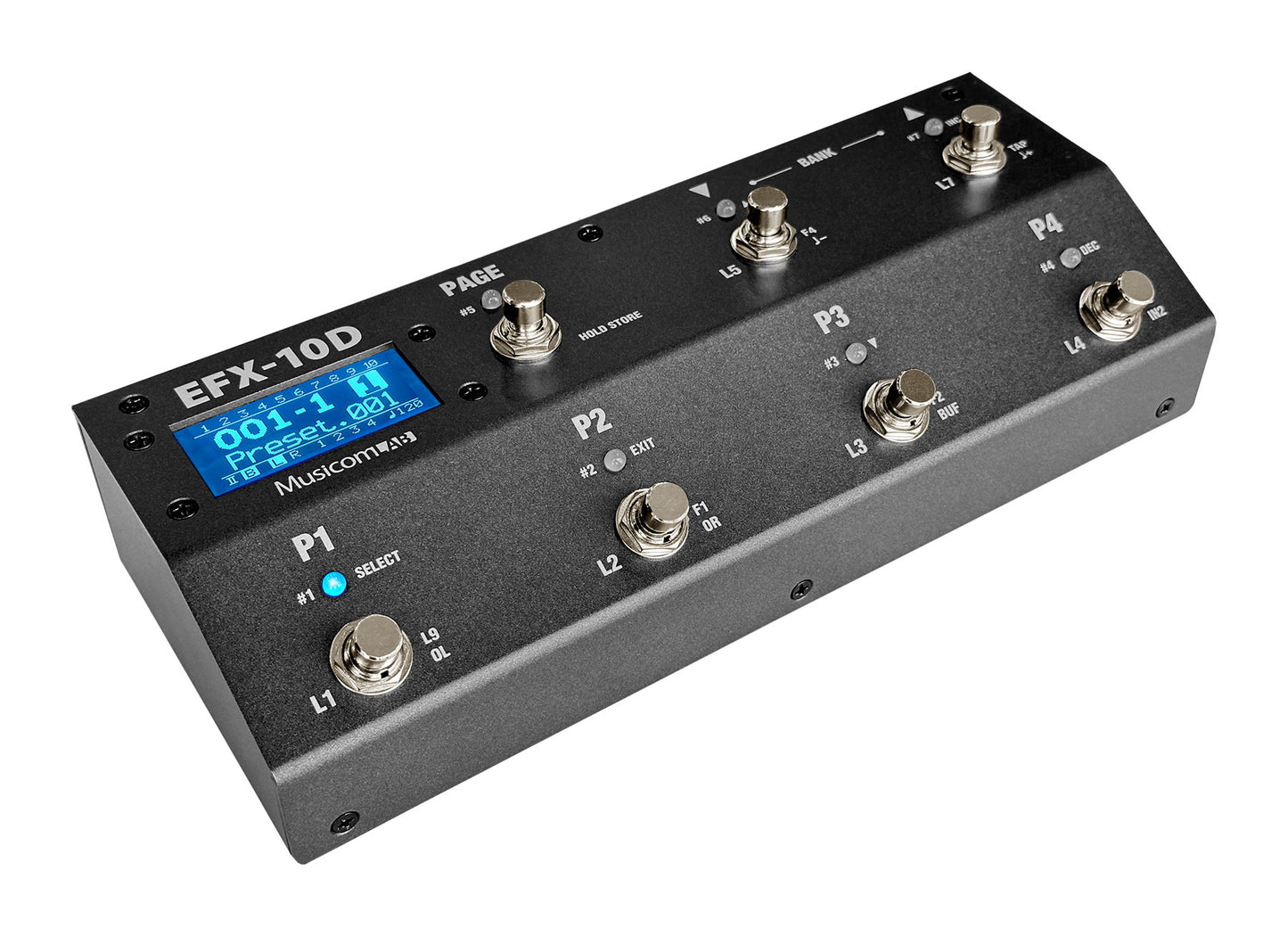

MusicomLAB EFX-10D Audio Controller

We are a US Authorized MusicomLAB Dealer. We support and service MusicomLAB products purchased from us here in the US.

New! The latest from MusicomLAB.

The EFX-10D Audio Controller is the ultimate floor-based all-in-one switching system. The most powerful audio controller with this small a footprint. Takes less room on your pedalboard than others.

The EFX-10D is a compact, easy to use, has 10 fully programmable loops, 4 function switches and a MIDI foot-controller.

The EFX-10D has a powerful MIDI function, so it can also be used with rack-based rig.

Easily program the EFX-10D with the EFX-10D Editor, available for Windows / Mac OS from the manufacturer's website.

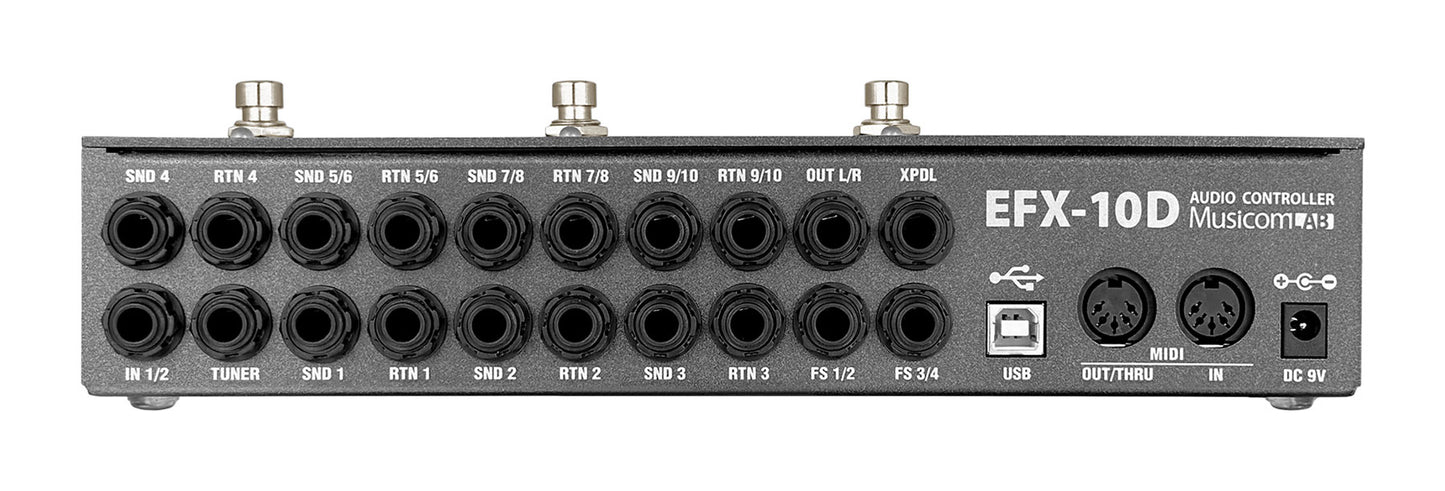

• 10 mono loops

• Programmable loop order each preset

• One of 2 inputs is selectable using TRS jack

• Output L/R are capable using TRS jack

• Loop5/6, Loop7/8 and Loop9/10 are capable using TRS jacks

• Up to 2 loops can be assigned to Carry-over between presets

• 801 preset memory locations

• (200 banks of 4 presets, plus a Global Preset)

• Create up to 800 songs

• Organized the 800 songs in to 64 sets of 120 songs

• 4 function switches via 2 TRS jacks

• (Latched / Momentary / Tempo Sync)

• Flexible switch setting

• Click-Less functions

• 16 MIDI messages (PC, CC, Note or SysEx) each preset

• 8 MIDI messages (PC, CC, Note or SysEx) each switch

• 8 Audio actions each IA switch

• MIDI Time Clock or Analog Tempo out for TAP-TEMPO

• One expression pedal or 2 foot-switches (XPDL)

• USB Connection to a PC or MAC

• Graphic LCD for to show a lot of information

• Easily copy presets, banks, songs and sets

• Easily name presets, songs, sets, pages and switches

• Heavy-duty footswitches

• Powered by 9VDC (center negative) 250mA

• Dimensions : 263(W) x 110(D) x 68(H) mm

• 10.4(W) x 4.3(D) x 2.7(H) inches

• Weight : 1,000 g / 2.2 lbs

• Buffer Input Impedance - 1 MΩ

• Buffer Output Impedance - 100 Ω

• Nominal Audio Signal Level - -10 dBu

• Maximum Audio Signal Level - +18 dBu

• Current Draw - 250 mA (DC9V Center Negative)
